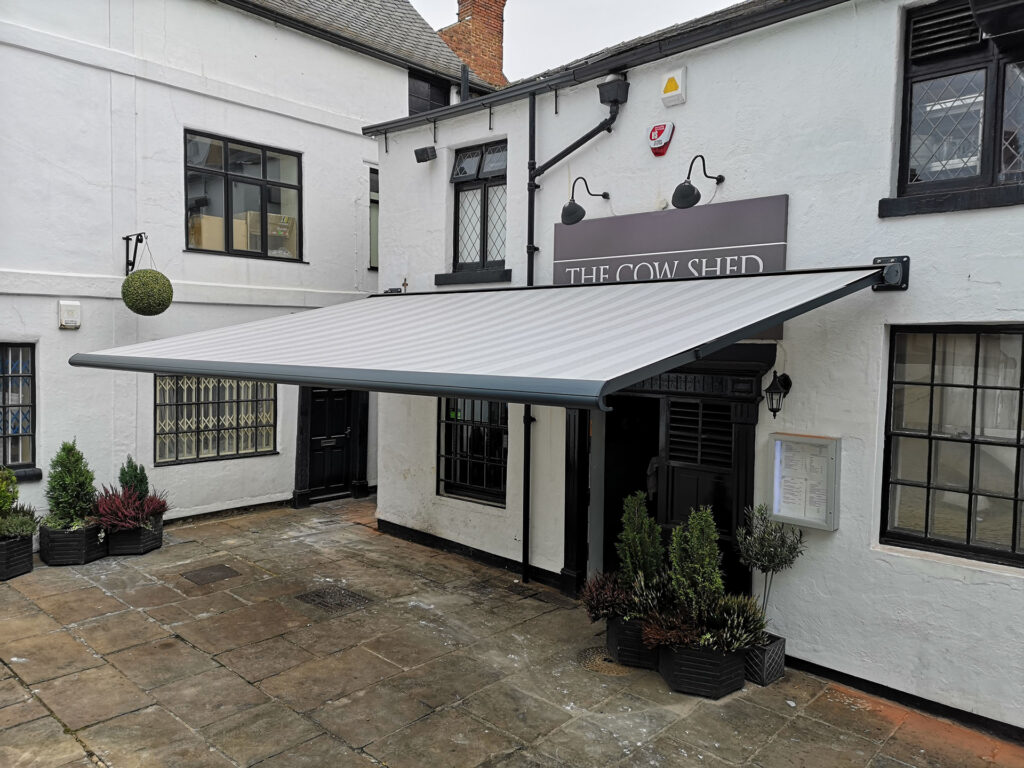

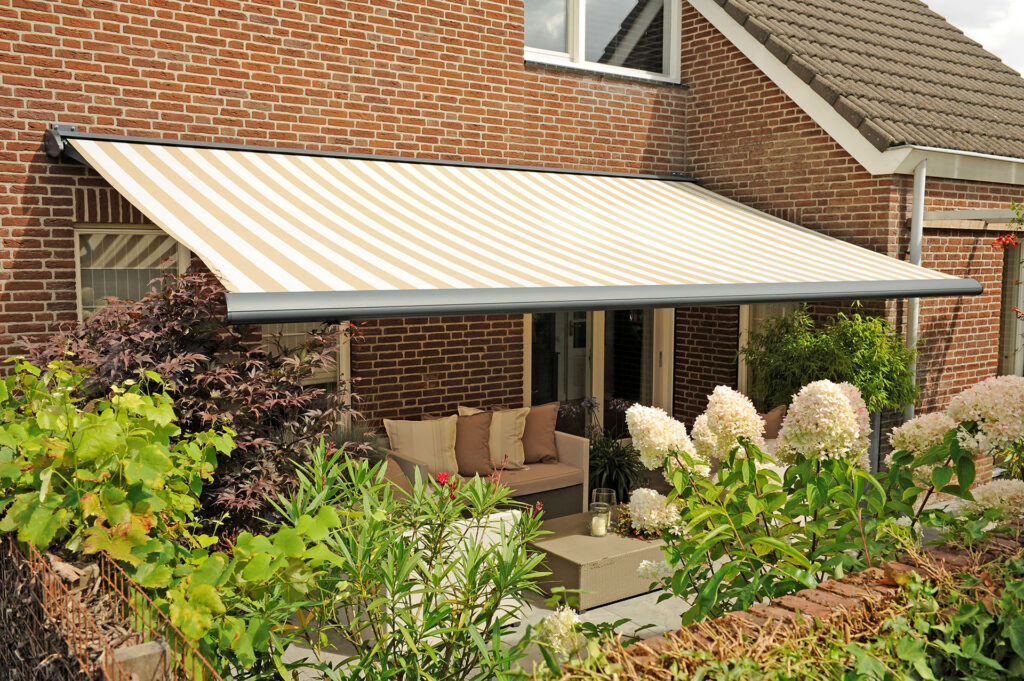

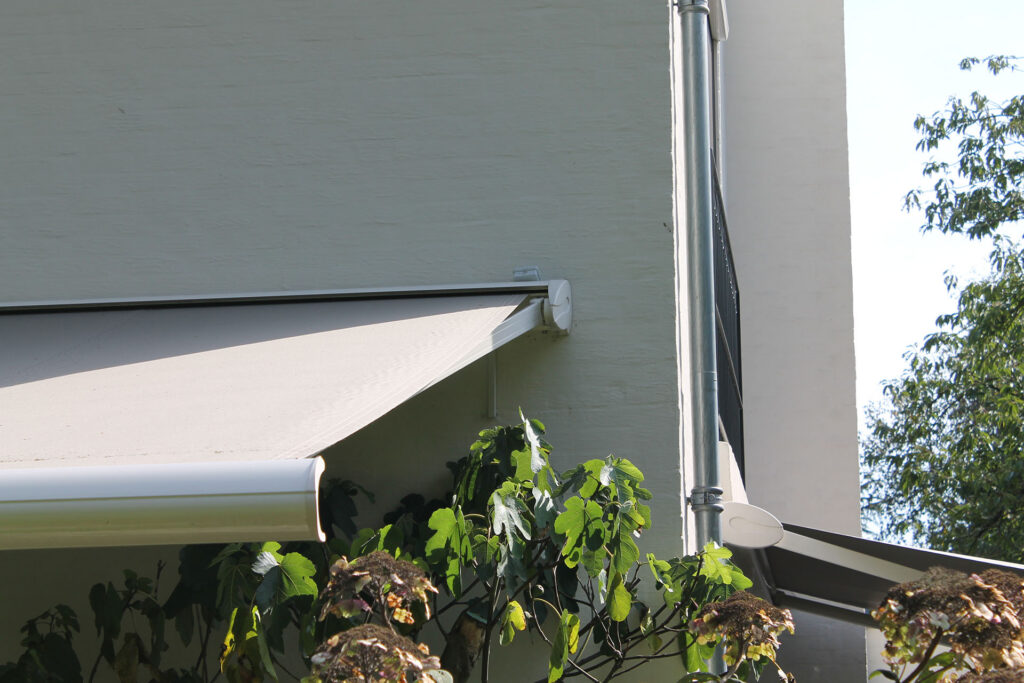

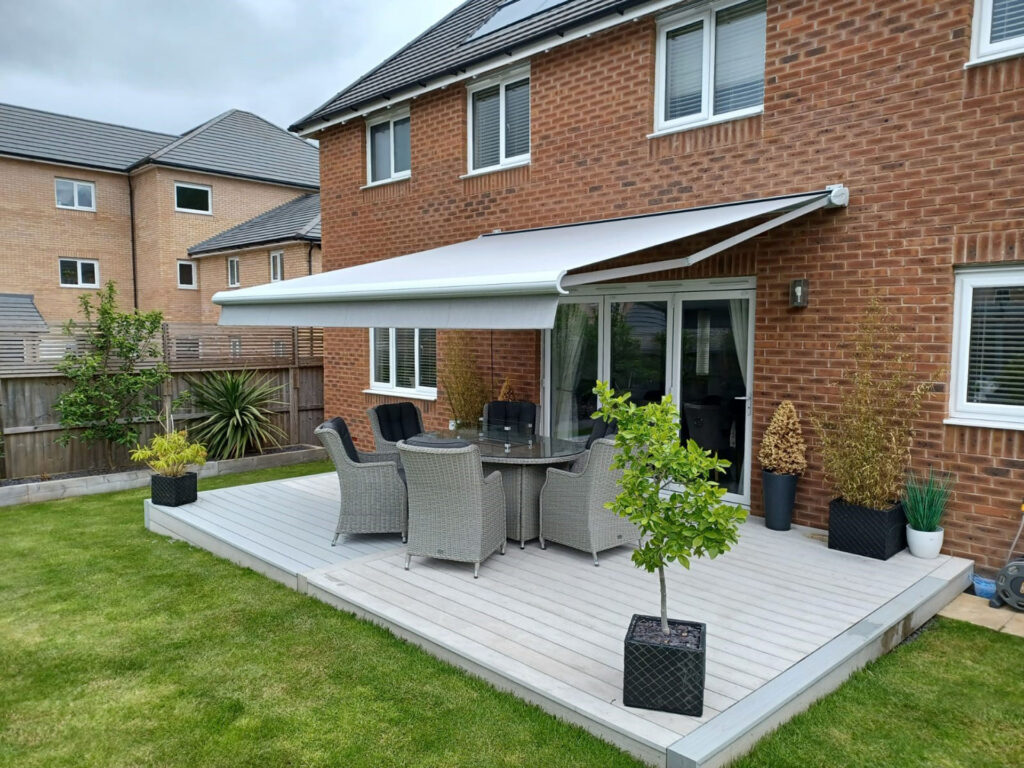

Coniston

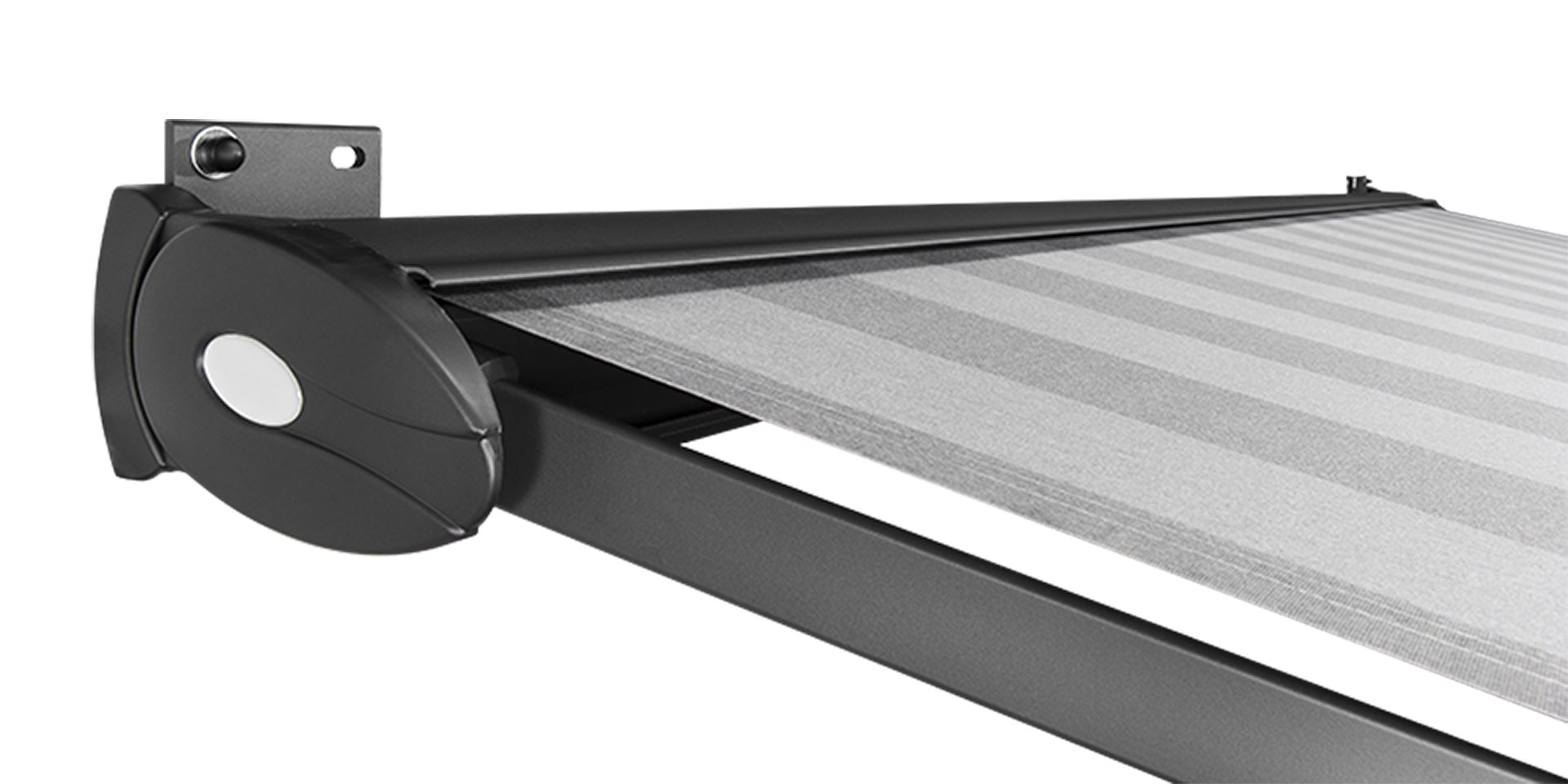

Coniston’s distinguishing features are its olive-shaped appearance, unique adjustment settings and substantial dimensions. These ensure that the Coniston can be fitted in almost any imaginable situation. As a larger version of a Windermere, the Coniston is also an attractive addition to your facade, when closed. If you are looking for a stylish and high quality terrace awning with stunning looks, then Coniston is your model.
Download Fabric Brochure
Contact
Characteristics
- Fabric fully protected in cassette
- Unique olive-shaped design
- Available with or without valance
- Available electrical control system only
- Full Cassette
We offer a wide range of high-quality acrylic fabrics as standard, with 20 solid colours, 13 textured designs, and 20 stripes. For projects requiring something extra, we also supply:
- Premium Ranges or PVC waterproof fabrics (PDF brochures available – just ask the team!)
- Custom signwriting options to the valance or main cover
We also provide our trade partners with fabric sample books so your customers can see the fabrics up close, helping them make the perfect choice.
Mounting
Wall mounted
2 Brackets (Centre Bracket Req on widths over 4750mm)
Certifications
- Lifespan class: 3
- Water resistance class: 2
- Wind resistance class: 2
Colours
RAL 7016
Anthracite Grey
RAL 9001
Cream
RAL 9005
Jet Black
RAL 7035
Light Grey
RAL 9010
Pure White
RAL 9006
White Aluminium
Minimum Widths
| Projection | 2000 | 2500 | 3000 | 3500 |
| Electric | 2490 | 3060 | 3600 | 3840 |
Maximum Dimensions
| Width | Projection | |
|---|---|---|
| Coniston | 6500mm | 3000mm |
| Coniston | 6000mm | 3500mm |
